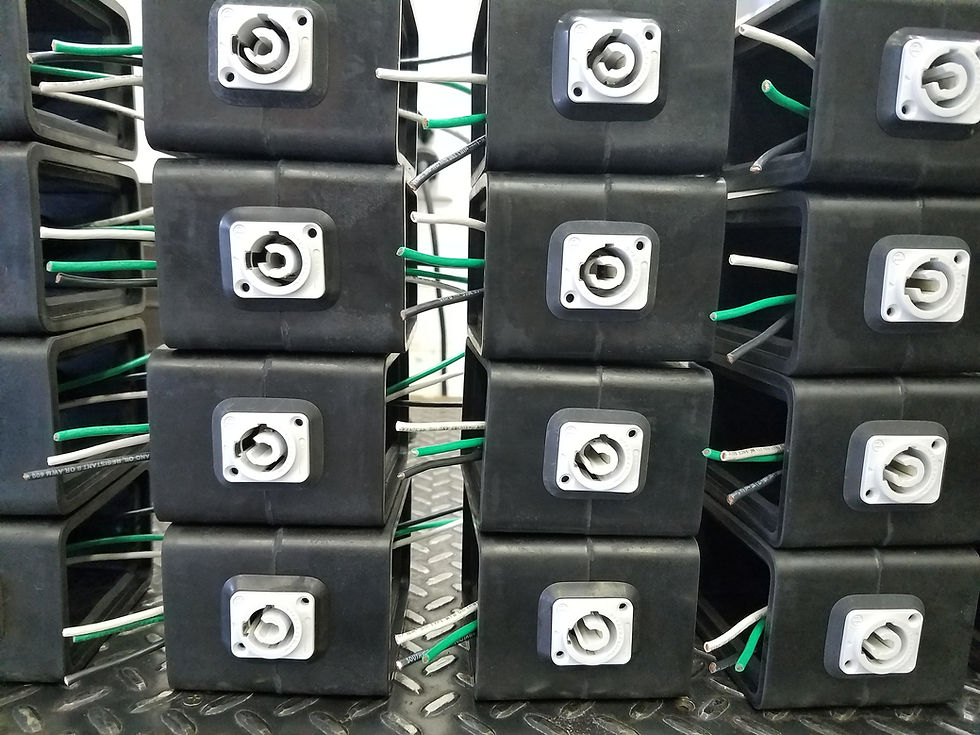

OA Windsor 3PC PowerCON Outlet Box
OA Windsor 3PC PowerCON Outlet Box
A durable OA Windsor rubber box and genuine Neutrik brand powerCON NAC3MPXXA and NAC3MPXXB connectors team up for flexible power distribution. Box has one powerCon input and one powerCON output. Comes with SCNAC-01 and SCNAC-02 sealing covers (dust plugs; not pictured).

Box Options:
  • Assembled Double Duplex 3PC PowerCON Outlet Box: includes one Neutrik brand powerCON NAC3MPXXA and one NAC3MPXXB connector, two Hubbell Edison Duplex 5352 spec. grade receptacles facing 180 degrees away from each other (back to back), assembled with two duplex covers and dust caps.
  • Assembled Single Duplex 3PC PowerCon Outlet Box: includes one Neutrik brand powerCON NAC3MPXXA and one NAC3MPXXB connector, one Hubbell Edison Duplex 5352 spec. grade receptacle, assembled with one duplex cover, one blank cover, and dust caps.
  • 3PC PowerCON Outlet Box Only: unassembled box drilled for powerCON input and output, and includes covers and cover screws only (does not include connectors or receptacles).

Additional Configurations and Wiring
Additional configurations are available by custom order. Also, we can wire and assemble your boxes with a variety of options to meet your power distribution needs. If you'd like your box(es) customized, contact us to discuss options and prices.

OA Windsor 3PC PowerCON Outlet Box

$99.50Price
Quantity

  • Cover Option Description

    Select your covers from the "Cover Option" menu on this page. Choose from these cover options:

    • 2D: two Edison Duplex covers.
    • DB: one Edison Duplex cover and one blank cover.

  • PowerCON Connector Specifications

    From the Neutrik website:

    • Appliance inlet connector, 3/16" flat tab terminals.
    • The powerCON XX is a locking mains connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection.
    • This connector is suitable to be used as part of fire enclosures according to IEC 62368-1.
    • This appliance coupler fulfils the requirements of the IEC 60320-1 and of theUL 60320-1 with breaking capacity (CBC).
    • Appliance coupler have superior electrical endurance due to its CBC design according to the IEC 60320-1.
    • Appliance couplers NAC3MPXXA and NAC3MPXXB are designed to be engaged or disengaged in normal use when live or under load when using with connectors and plug connectors of the FXX Serie(s).

    Features & Benefits

    • Lockable single phase connector
    • Certified according to IEC 60320-1 & UL 60320-1
      UL US 498 / UL CA 498
    • Certified according to UL-1977, & CAN/CSA-C22.2 No. 182.3
    • Extremely robust and reliable
    • UL94 V-0 materials
    • Drop-in replacement for NAC3MXXA; mates to NAC3FXXA cable connectors
    • 3 contacts for line, neutral and premating safety ground
    • Fast and easy twist lock latching system Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
    • Suitable for fire enclosures according. to IEC 62368-1
